API 6A B-1 Tubing Head Adapter

Basic Info

Model NO.	YTA-1
HS Code	3917400000
Production Capacity	1000 Sets Per Month

Product Description

Flange Size Working Pressure Threaded Top Suspension Threads 7-1/16 2000psi 2-3/8 EUE 2-3/8 EUE7-1/16 2000psi 2-7/8 EUE 2-7/8 EUE7-1/16 3000psi 2-3/8â EUE 2-3/8 EUE7-1/16 3000psi 2-7/8 EUE 2-7/8 EUE7-1/16 5000psi 2-3/8 UE 2-3/8 EUE 7-1/16 5000psi 2-7/8 EUE 2-7/8 EUE

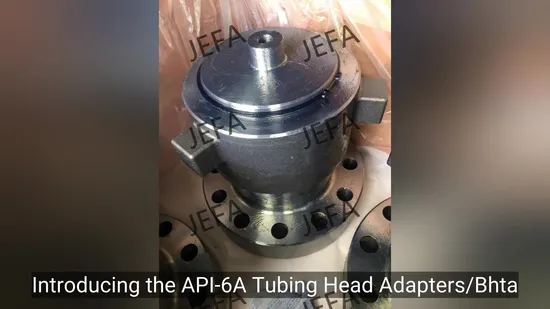

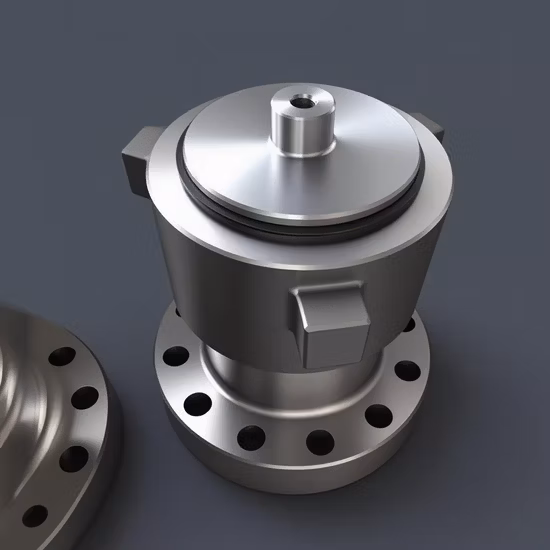

Tubing Head Adapters of YouYao

Tubing head adapter is often used on the top of the tubing head, it can provides a connection between tubing head and Christmas tree. The bottom flange of the adapter matches the tubing head, and the top flange of the adapter matches the X-MAS tree. Tubing head adapters are available for all types of single and multi-string completions, including those using ESP penetrator, packers, down hole control valves and gas lift valves.

Our adapters have threaded, flanged or studded-flange top connections. our tubing head adapters are available with hydraulic supply inlets for down hole control valve. Camtop can also supplies various types of adapters specially as per requirements.

Tubing head and tubing spool Tubing head is a body with two flange that can supports the tubing string on a oilwell, seals off the pressure between the casing and tubing annulus, and connect with tubing adapter on the top. Tubing Head &tubing spool are a straight bore bowl with 45° landing shoulder design which avoids
