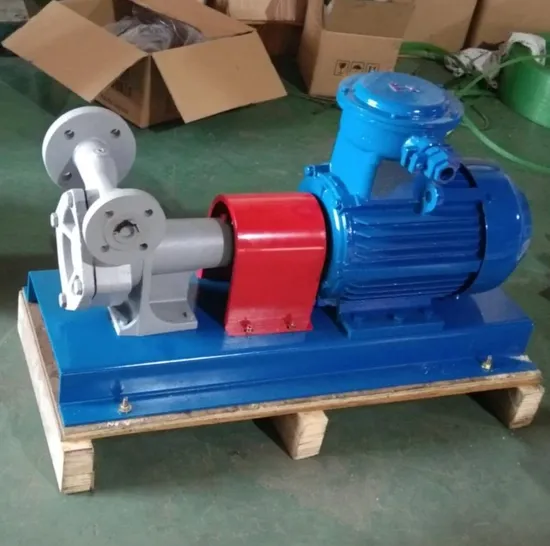

LPG Transfer Pump
Summarize: 1.YQB series liquefied petroleum gas pump (LPG transfer pump), is mainly used in delivering liquefied petrole
Basic Info
| Model NO. | YQB |
| Flow Rate | Constant Pump |
| Drive | Electric |
| Discharge Pressure | 0.5 MPa |
| Transport Package | Standard Export Package |
| Specification | ISO, SGS, CE |
| Trademark | YONJOU |
| Origin | Made in China |
| HS Code | 841311000 |
| Production Capacity | 500/Month |
Product Description
Summarize:
1.YQB series liquefied petroleum gas pump (LPG transfer pump), is mainly used in delivering liquefied petroleum gas, propylene, liquid ammonia, also for irrigation or various volatile liquids with similar nature or petroleum products. 2.This pump is positive displacement vane pump, the advanced structure, the stator surface is composition of the composite curve,both ends used the mechanical seal, each fixed end are used 'O'- rings, rotary movement of the components are corresponding of metal to non-metallic, safe, reliable, so called a muti-function machine.
Product Details:
Working Principle: | Positive Displacement type vane pump |
Main applications: | LPG,Propylene,liquid ammonia |
Driver: | Electric motor, diesel engine |
Power Specs: | 220V,240V,380V,400V,415V,440V 50Hz/60Hz |
Installation position: | Horizontal |
Casing/vane material: | Cast iron/EPGC vane |
Seal | Mechanical seal |
Maximum drive rating: | 30KW(40HP) |
| Temperature | -40~+80ºC |
Maximum discharge-side pressure: | 1.6MPa(16bar) |
Maximum head: | 160m(525ft) |
Flow rate range: | 1~100m3/h(4.4~440US.GPM) |
| Model | Rotary Speed | Flow Rate | Working Pressure | Pressure Difference | Motor Model | Motor Power | Entrance Diameter | Exit Diameter | Tempreture Range |
| Rpm | m³/h | Mpa | Mpa | KW | mm | ºC | |||
| YQB1-5 | 730 | 1 | 1.6 | 0.5 | YB90L-4 | 1.5 | 25 | 25 | -40~+80 |
| YQB2-5 | 930 | 2 | 1.6 | 0.5 | YB90L-4 | 1.5 | 25 | 25 | -40~+80 |
| YQB5-5 | 1130 | 5 | 1.6 | 0.5 | YB100L-4 | 2.2 | 32 | 32 | -40~+80 |
| YQB10-5 | 600 | 10 | 1.6 | 0.5 | YB132S-4 | 5.5 | 50 | 50 | -40~+80 |
| YQB10-5A | 600 | 10 | 1.6 | 0.4 | YB112L-4 | 4 | 50 | 50 | -40~+80 |
| YQB15-5 | 780 | 15 | 1.6 | 0.5 | YB132S-4 | 5.5 | 50 | 50 | -40~+80 |
| YQB15-5A | 780 | 15 | 1.6 | 0.4 | YB112M-4 | 4 | 50 | 50 | -40~+80 |
| YQB25-5 | 600 | 25 | 1.6 | 0.5 | YB132M-4 | 7.5 | 65 | 65 | -40~+80 |
| YQB35-5 | 780 | 35 | 1.6 | 0.5 | YB160M-4 | 11 | 80 | 80 | -40~+80 |
| YQB50-5 | 551 | 50 | 1.6 | 0.5 | YB160L-4 | 15 | 100 | 100 | -40~+80 |
| YQB60-5 | 600 | 60 | 1.6 | 0.5 | YB180M-4 | 18.5 | 100 | 100 | -40~+80 |
| YQB80-5 | 780 | 80 | 1.6 | 0.5 | YB180M-4 | 22 | 100 | 100 | -40~+80 |
| YQB100-5 | 780 | 100 | 1.6 | 0.5 | YB200L-4 | 30 | 125 | 125 | -40~+80 |
Company Information:
Zhejiang Yonjou Technology is one of the leading manufacturers and exporters in the field of industry pumps with manufacturing facilities in mainland China. We are specialized in oil pump, diaphragm pump, diesel engine pump, centrifugal pump, screw pump, chemical pump etc.
